Description

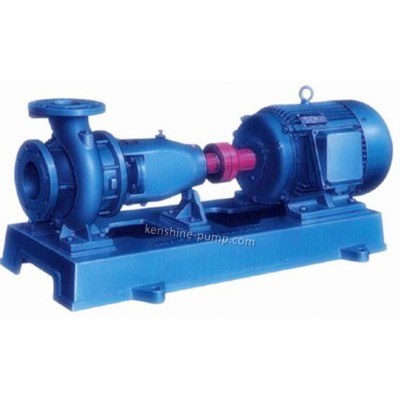

Horizontal centrifugal hot water circulating pump
| Model | Impeller | Flow | Head(m) | Speed(r/min) | Efficiency | (NPSH)r | Shaft | Motor | |
| Type | (%) | m | power | Model /KW | |||||
|
|
(M3/h) | (L/S) |
|
|
(KW) |
|
|||
| 65-50-160 | O | 25 | 6.94 | 32 | 2900 | 65 | 2 | 3.35 | 132S1-2/5.5 |
| A | 23.5 | 6.52 | 28.2 | 63 | 2 | 2.86 | 112M-2/4 | ||
| B | 21.6 | 6 | 23.9 | 58 | 2 | 2.42 | |||
| C | 20.1 | 5.57 | 20.6 | 55 | 2 | 2.05 | 100L-2/3 | ||
| 65-50-160 | O | 12.5 | 3.47 | 8 | 1450 | 60 | 2 | 0.45 | 802-4/0.75 |
| A | 11.7 | 3.26 | 7 | 58 | 2 | 0.39 | |||
| B | 10.8 | 3 | 6 | 55 | 2 | 0.32 | 801-4/0.55 | ||
| C | 10 | 2.79 | 5.2 | 52 | 2 | 0.27 | |||
| 65-40-200 | O | 25 | 6.94 | 50 | 2900 | 60 | 2 | 5.67 | 132S2-2/7.5 |
| A | 23.8 | 6.6 | 45.1 | 59.5 | 2 | 4.91 | |||
| B | 22.5 | 6.25 | 40.5 | 59 | 2 | 4.21 | 132S1-2/5.5 | ||
| C | 21.3 | 5.9 | 36.1 | 57.5 | 2 | 3.64 | |||
| 65-40-200 | O | 12.5 | 3.47 | 12.5 | 1450 | 55 | 2 | 0.77 | 90S-4/1.1 |
| A | 11.9 | 3.3 | 11.3 | 55 | 2 | 0.66 | |||
| B | 11.3 | 3.13 | 10.1 | 55 | 2 | 0.56 | |||
| C | 10.6 | 2.95 | 9 | 55 | 2 | 0.48 | 802-4/0.75 | ||
| 65-40-250 | O | 25 | 6.94 | 80 | 2900 | 50 | 2 | 10.9 | 160M2-2/15 |
| A | 23.4 | 6.51 | 70.2 | 49 | 2 | 9.14 | |||
| B | 21.9 | 6.07 | 61.1 | 47.6 | 2 | 7.64 | 160M1-2/11 | ||
| C | 20.5 | 5.69 | 53.7 | 46.3 | 2 | 6.46 | |||
| 65-40-250 | O | 12.5 | 3.47 | 20 | 1450 | 46 | 2 | 1.48 | 100L1-4/2.2 |
| A | 11.7 | 3.25 | 17.6 | 44.8 | 2 | 1.25 | |||
| B | 10.9 | 3.04 | 15.3 | 43.8 | 2 | 1.04 | 90L-4/1.5 | ||
| C | 10.2 | 2.84 | 13.4 | 43 | 2 | 0.87 | |||
| 65-40-315 | O | 25 | 6.94 | 125 | 2900 | 50 | 2.5 | 21.3 | 200L1-2/30 |
| A | 23.3 | 6.48 | 109 | 39 | 2.5 | 17.5 | 180M-2/22 | ||
| B | 21.9 | 6.08 | 96 | 39.5 | 2.5 | 14.7 | 160L-2/18.5 | ||
| C | 20.2 | 5.62 | 81.9 | 38.5 | 2.5 | 11.7 | 160M2-2/15 | ||
| 65-40-315 | O | 12.5 | 3.47 | 32 | 1450 | 37 | 2.5 | 2.94 | 112M-4/4 |
| A | 11.7 | 3.24 | 27.9 | 36.6 | 2.5 | 2.42 | |||
| B | 11 | 3.04 | 24.6 | 36 | 2.5 | 2.02 | 100L2-4/3 | ||
| C | 10.1 | 2.81 | 21 | 36 | 2.5 | 1.61 | |||
| 80-65-125 | O | 50 | 13.9 | 20 | 2900 | 75 | 3 | 3.63 | 132S1-2/5.5 |
| A | 47.9 | 13.3 | 18.3 | 73 | 3 | 3.27 | |||
| B | 43.6 | 12.1 | 15.2 | 69.5 | 3 | 2.59 | 112M-2/4 | ||
| C | 38.6 | 10.7 | 11.9 | 65.5 | 3 | 1.91 | 100L-2/3 | ||
| 80-65-125 | O | 25 | 6.94 | 5 | 1450 | 71 | 2.5 | 0.48 | 802-4/0.75 |
| A | 23.9 | 6.65 | 4.6 | 70 | 2.5 | 0.43 | |||
| B | 21.8 | 6.05 | 3.8 | 66 | 2.5 | 0.34 | 801-4/0.55 | ||
| C | 19.3 | 5.36 | 3 | 62 | 2.5 | 0.25 | |||
| 80-65-160 | O | 50 | 13.9 | 32 | 2900 | 73 | 2.5 | 5.97 | 132S2-2/7.5 |
| A | 46.9 | 13.3 | 28.2 | 71 | 2.5 | 5.07 | |||
| B | 43.2 | 12 | 23.9 | 67 | 2.5 | 4.2 | 132S1-2/5.5 | ||
| C | 40.1 | 11.1 | 20.6 | 64 | 2.5 | 3.52 | |||
