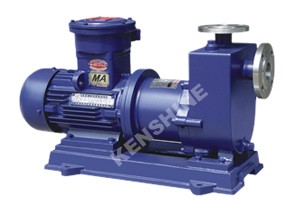

ZCQ Stainless steel self priming magnetic pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps
ZCQ Series self priming type magnet pump is the magnet pump with 4meter self priming height but it need not install foot valve and pour guide water. Rotary ring replaces stationary ring so that parts which contact with liquids are entirely sealed and no leak. Pump body and parts which contacts with liquids are stainless steel and ceramic and Teflon etc material to insure the good anticorrosion performance
Parameter:
|
Model |
Caliber(mm) |
Head |
Capacity |
Power |
Speed |
Voltage |
Self priming |
|
|
Inlet |
Outlet |
|||||||
|
ZCQ20-15-115 |
20 |
15 |
12 |
30 |
0.37 |
2900 |
380/220 |
3 |
|
ZCQ25-20-115 |
25 |
20 |
15 |
110 |
1.1 |
2900 |
380 |
4 |
|
ZCQ32-25-115 |
32 |
25 |
15 |
110 |
1.1 |
2900 |
380 |
4 |
|
ZCQ32-25-145 |
32 |
25 |
25 |
110 |
1.1 |
2900 |
380 |
4 |
|
ZCQ40-32-132 |
40 |
32 |
20 |
180 |
2.2 |
2900 |
380 |
4 |
|
ZCQ40-32-160 |
40 |
32 |
32 |
180 |
4 |
2900 |
380 |
4 |
|
ZCQ50-40-145 |
50 |
40 |
25 |
240 |
4 |
2900 |
380 |
4 |
|
ZCQ50-40-160 |
50 |
40 |
32 |
220 |
4 |
2900 |
380 |
4 |
|
ZCQ65-50-145 |
65 |
50 |
25 |
280 |
5.5 |
2900 |
380 |
4 |
|
ZCQ65-50-160 |
65 |
50 |
32 |
450 |
7.5 |
2900 |
380 |
4 |
|
ZCQ80-65-125 |
80 |
65 |
20 |
800 |
7.5 |
2900 |
380 |
4 |
|
ZCQ80-65-160 |
80 |
65 |
32 |
800 |
15 |
2900 |
380 |
4 |
|
ZCQ100-80-160 |
100 |
80 |
32 |
1500 |
22 |
2900 |
380 |
4 |
|
Remark: Pump body: (1Cr18Ni9Ti: SS304). Motor : Explosion proof or non-explosion proof |
||||||||
