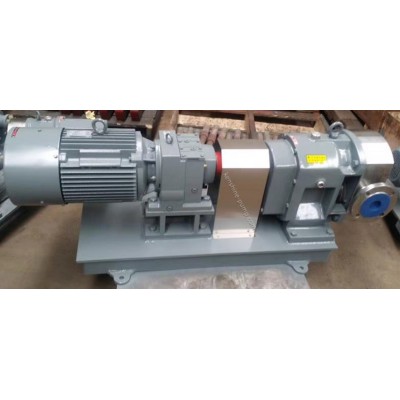

ZB3A Stainless steel lobe rotor pump:
ZB3A Series stainless steel sanitary rotor lobe pump can be named colloidal pump. It has more special function than normal rotor pumps. The ZB3A Series stainless steel sanitary pump is specially suitable for high viscosity jelly. The pumped materials will not be changed after the delivery.
All wet parts of ZB3A Series sanitary rotor lobe pump are made of stainless steel and the pump is used to pump the fluids with high viscosity or thickness or with solids. Liquids temperature range: -30 to 200 Degree Celsius. High pressure of outlet makes sure the long distance and high resistance transportation with stable capacity. There is no touch of two rotors. So no abrasion even after long time work. It has the merits of stable work, low noise and easy assembly and disassembly. The pump is widely used in health, food, chemical industry areas etc.
| MODEL | Capacity(100Circle)（L） | Speed | Flow rate（L/H） | Moor power(KW) |
| ZB3A-3 | 3 | 200～500 | 300～800 | 0.55 |
| ZB3A-6 | 6 | 200～500 | 650～1600 | 0.75 |
| ZB3A-8 | 8 | 200～500 | 850～2160 | 1.5 |
| ZB3A-12 | 12 | 200～500 | 1300～3200 | 2.2 |
| ZB3A-20 | 20 | 200～500 | 2100～5400 | 3 |
| ZB3A-30 | 30 | 200～400 | 3200～6400 | 4 |
| ZB3A-36 | 36 | 200～400 | 3800～7600 | 5.5 |
| ZB3A-52 | 52 | 200～400 | 5600～11000 | 5.5 |
| ZB3A-66 | 66 | 200～400 | 7100～14000 | 7.5 |
| ZB3A-78 | 78 | 200～400 | 9000～18000 | 7.5 |
| ZB3A-100 | 100 | 200～400 | 11000～22000 | 11 |
| ZB3A-135 | 135 | 200～400 | 15000～30000 | 15 |
| ZB3A-160 | 160 | 200～400 | 17000～34000 | 18.5 |
| ZB3A-200 | 200 | 200～400 | 21600～43000 | 22 |
