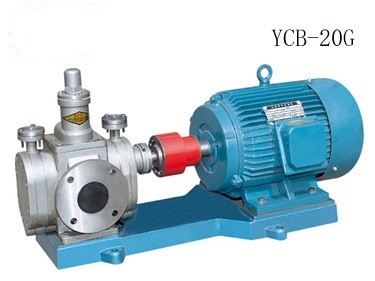

YCB-G Series heat insulating gear pump
YCB-G Series heat insulating gear pump is used to transfer different medium such as heavy oil, asphalt, resin, detergent and glue which is easily solidified at normal temperature and the medium does not contain solid particles. The medium temperature is not higher than 300 degree Celsius. The pump is also suitable for the site with heat insulated requirement in the process technology and outdoors installation at very cod area.
YCB-G Series heat insulating gear pump belongs to external gear pump. The tooth form is composite formed by arc and sine curve. It can transfer many kinds of medium with steady output flow and pressure. There are heat insulating jacket and inlet and outlet joints on the pump casing. Heat insulating can adopt the media such as heat conducting oil, steam, hot water and cold water to heat, keep warm and cooling the transferred medium for pump. When the viscosity of transferred medium is larger than 1500CST, pump rotary speed should be reduced.
Specification sheet:
|
Model |
FLOW |
Speed |
Pressure |
|
Efficiency |
Motor |
||
|
Q |
n |
p |
NPSHr |
η |
||||
|
|
r/min |
Mpa |
|
% |
||||
|
m3/h |
|
|
m |
|
Frequency |
Power KW |
Model |
|
|
|
|
|
|
Hz |
||||
|
YCB0.6-0.6 |
0.6 |
910 |
0.6 |
5.5 |
32 |
50 |
0.75 |
Y90S-6 |
|
1 |
1390 |
50 |
0.75 |
Y80L2-4 |
||||
|
0.7 |
1130 |
60 |
0.75 |
Y90S-6 |
||||
|
1.2 |
1710 |
60 |
0.75 |
Y80L2-4 |
||||
|
YCB0.6-1.6 |
0.6 |
910 |
1.6 |
7 |
70 |
50 |
1.1 |
Y90L-6 |
|
1 |
1400 |
50 |
1.5 |
Y90L-4 |
||||
|
0.7 |
1130 |
60 |
1.1 |
Y90L-6 |
||||
|
1.2 |
1710 |
60 |
1.1 |
Y90S-4 |
||||
|
YCB1.6-0.6 |
1.6 |
910 |
0.6 |
5.5 |
42 |
50 |
0.75 |
Y90S-6 |
|
2.5 |
1400 |
50 |
1.1 |
Y90S-4 |
||||
|
1.9 |
1130 |
60 |
1.1 |
Y90L-6 |
||||
|
3 |
1710 |
60 |
1.5 |
Y90L-4 |
||||
|
YCB1.6-1.6 |
1.6 |
940 |
1.6 |
7 |
71 |
50 |
2.2 |
Y112M-6 |
|
2.5 |
1440 |
50 |
4 |
Y112M-4 |
||||
|
1.9 |
1150 |
60 |
2.2 |
Y112M-6 |
||||
|
3 |
1750 |
60 |
4 |
Y112M-4 |
||||
|
YCB3.3-0.6 |
3.3 |
940 |
0.6 |
5 |
60 |
50 |
1.5 |
Y100L-6 |
|
5 |
1420 |
50 |
2.2 |
Y100L1-4 |
||||
|
4 |
1150 |
60 |
1.5 |
Y100L-6 |
||||
|
6 |
1730 |
60 |
2.2 |
Y100L1-4 |
||||
|
YCB3.3-1.6 |
3.3 |
960 |
1.6 |
7 |
72 |
50 |
5.5 |
Y132M2-6 |
|
5 |
1440 |
50 |
7.5 |
Y132M-4 |
||||
|
4 |
1170 |
60 |
4 |
Y132M1-6 |
||||
|
6 |
1750 |
60 |
7.5 |
Y132M-4 |
||||
|
YCB4-0.6 |
4 |
940 |
0.6 |
5 |
60 |
50 |
1.5 |
Y100L-6 |
|
6 |
1420 |
50 |
2.2 |
Y100L1-4 |
||||
|
4.8 |
1150 |
60 |
2.2 |
Y112M-6 |
||||
|
7.2 |
1730 |
60 |
3 |
Y100L2-4 |
||||
|
YCB4-1.6 |
4 |
960 |
1.6 |
7 |
72 |
50 |
5.5 |
Y132M2-6 |
|
6 |
1440 |
50 |
7.5 |
Y132M-4 |
||||
|
4.8 |
1170 |
60 |
5.5 |
Y132M-6 |
||||
|
7.2 |
1750 |
60 |
7.5 |
Y132M-4 |
||||
|
YCB8-0.6 |
8 |
960 |
0.6 |
5 |
61 |
50 |
3 |
Y132S-6 |
|
12 |
1440 |
50 |
5.5 |
Y132S-4 |
||||
|
9.6 |
1170 |
60 |
4 |
Y132M1-6 |
||||
|
14.4 |
1750 |
60 |
5.5 |
Y132S-4 |
||||
|
YCB8-1.6 |
8 |
970 |
1.6 |
7 |
75 |
50 |
11 |
Y160L-6 |
|
12 |
1460 |
50 |
15 |
Y160L-4 |
||||
|
9.6 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
14.4 |
1760 |
60 |
15 |
Y160L-4 |
||||
|
YCB10-0.6 |
10 |
960 |
0.6 |
5 |
62 |
50 |
4 |
Y132M1-6 |
|
15 |
1440 |
50 |
5.5 |
Y132S-4 |
||||
|
12 |
1170 |
60 |
5.5 |
Y132M2-6 |
||||
|
18 |
1750 |
60 |
7.5 |
Y132M-4 |
||||
|
YCB10-1.6 |
10 |
970 |
1.6 |
7 |
76 |
50 |
11 |
Y160L-6 |
|
15 |
1470 |
50 |
15 |
Y160L-4 |
||||
|
12 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
18 |
1770 |
60 |
18.5 |
Y160L-4 |
||||
|
YCB20-0.6 |
20 |
970 |
0.6 |
5 |
68 |
50 |
7.5 |
Y160M-6 |
|
24 |
1170 |
60 |
7.5 |
Y160M-6 |
||||
|
YCB25-0.6 |
25 |
970 |
0.6 |
5.5 |
69 |
50 |
11 |
Y160L-6 |
|
30 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
YCB30-0.6 |
30 |
970 |
0.6 |
5.5 |
70 |
50 |
11 |
Y160L-6 |
|
36 |
1170 |
60 |
11 |
Y160L-6 |
||||
|
YCB40-0.6 |
40 |
970 |
0.6 |
5.5 |
72 |
50 |
15 |
Y180L-6 |
|
48 |
1180 |
60 |
15 |
Y180L-6 |
||||
|
YCB50-0.6 |
50 |
970 |
0.6 |
5.5 |
72 |
50 |
22 |
Y200L2-6 |
|
60 |
1180 |
60 |
22 |
Y200L2-6 |
||||
