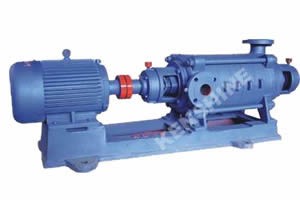

TSWA horizontal multistage centrifugal feed water pump

TSWA horizontal multistage centrifugal feed water pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

INQUIRY

entrust procurement

Description

TWDA Horizontal multistage centrifugal water pump low rotary speed 1450rpm

TSWA Series horizontal multistage centrifugal pump
TSWA Series multistage centrifugal pump has the advantages of energy saving and high efficiency and long life etc. TSWA Series horizontal multistage centrifugal pump is used to transport clear water which temperature is below 80℃ and liquids similar to water in physical and chemical characteristic.
Capacity range: =15～191m3/h, Head range: =17～247m , Speed :1450rpm.

The pump is widely used for water supply and discharge in city and factory and mine etc. It is specially in water supply in restaurant and air conditions system etc.

Parameter:

Model	Stage	Capacity		Head (m)	Motor power (KW)	Suction height (m)
Model	Stage	（m³/h）	（L/S）	Head (m)	Motor power (KW)	Suction height (m)
50TSWA	2	18	5	18.4	2.2	7.2
	3	18	5	27.6	3
	4	18	5	36.8	4
	5	18	5	46	5.5
	6	18	5	55.2	5.5
	7	18	5	64.4	7.5
	8	18	5	73.6	7.5
	9	18	5	82.8	7.5
75TSWA	2	36	10	23	5.5	7.2
	3	36	10	34.5	7.5
	4	36	10	46	11
	5	36	10	57.5	11
	6	36	10	69	15
	7	36	10	80.5	15
	8	36	10	92	18.5
	9	36	10	103.5	18.5
100TSWA	2	69	19.2	31.2	11	7
	3	69	19.2	46.8	15
	4	69	19.2	62.4	22
	5	69	19.2	78	30
	6	69	19.2	93.6	30
	7	69	19.2	109.2	37
	8	69	19.2	124.8	45
	9	69	19.2	140.4	45
125TSWA	2	90	25	43.2	22	6.8
	3	90	25	64.8	30
	4	90	25	86.4	45
	5	90	25	108	55
	6	90	25	129.6	75
	7	90	25	151.2	75
	8	90	25	172.8	90
	9	90	25	194.4	90
150TSWA	2	155	43	60	45	7.7
	3	155	43	90	75
	4	155	43	120	90
	5	155	43	150	110
	6	155	43	180	132
	7	155	43	210	155
	8	155	43	240	180
	9	155	43	270	180
