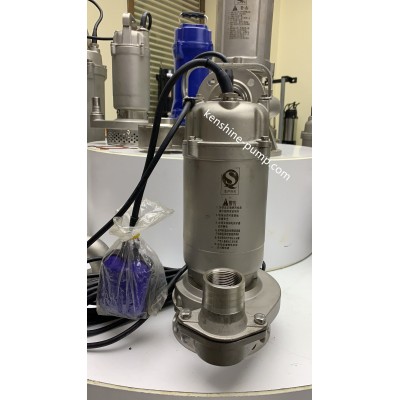

Stainless steel sewage submersible pump 220V 50HZ Single phase

Stainless steel sewage submersible pump

stainless steel submersible pump is casted in whole 304 or 316, 316 stainless steel material. Non- clogging, anti-winding. The pump is suitable to drainage sewage with acid and alkali. Seal O-ring: Viton.  Large flow channel impeller, NSK bearing, Double end face mechanical seal. The pump is submersible to run continuously for a long time.

220v,50HZ, Single phase motor. Pump outlet connection: flanges or blend with hose. The pump is ok to equip with floating ball switch.

The pump is widely used to discharge the sewage with acid alkali, chemical wastewater, sewage in food factory, seawater treatment etc.

MODEL	CAPACITY(m3/h)	Head(m)	power(KW)	outlet(mm)	voltage(V)	SPEED(RPM)
50WQP10-10-0.75	10	10	0.75	50	220V	2900
65WQP15-6-0.75	15	6	0.75	65	220V	2900
50WQP7-15-1.1	7	15	1.1	50	220V	2900
65WQP20-6-1.1	20	6	1.1	65	220V	2900
50WQP15-15-1.5	15	15	1.5	50	220V	2900
65WQP25-7-1.5	25	7	1.5	65	220V	2900
50WQP15-20-2.2	15	20	2.2	50	220V	2900
65WQP20-15-2.2	20	15	2.2	65	220V	2900
80WQP45-10-2.2	45	10	2.2	80	220V	2900
100WQP50-7-2.2	50	7	2.2	100	220V	2900
50WQP15-30-3	15	30	3	50	220V	2900
