SB Portable Barrel Pump /Oil pump/drum pump/plastic pump/stainless steel pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

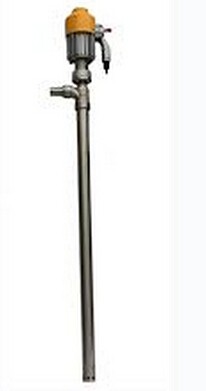

SB Portable Barrel Pump
Brief
This series single stage electrical barrel pump is take copy from Germany technology,it is high quality ,high efficiency,easy repair,design to delivery kinds of oils,acid,alkali,brine,beverage and other liquids. According to different medium,it can be made of RPP, aluminum alloy,stainless steel.
Application 1. Petroleum chemical, sophisticated chemical ,dyeing,environment protect,water
treatment,medicine,food,etc.
2. Oil fields,oil tank,oil refinery,gas station,agriculture,factory,car ,ship.,
Working Conditions
Ambient temperature: -20C-40C Altitude:<1000m Voltage:220V Frequency:50Hz
Specification sheet:
| PUMP | FLOW | FLOW | HEAD | SPEED | POWER | INLET | OUTLET | Material | weight |
| MODEL | m3/h | L/min | m | r/min | Kw | mm | mm | tube | Kg |
| SB-1 | 7.8 | 130 | 7.5 | 10000 | 1.1 | 50 | 25 | Stainless steel | 8 |
| SB-1-1 | 6.6 | 110 | 7 | 10000 | 0.88 | 50 | 25 | Stainless steel | 7.5 |
| SB-1-2 | 7.8 | 130 | 7.5 | 10000 | 1.1 | 50 | 25 | Stainless steel | 8 |
| SB-1-3 | 6.6 | 110 | 7.5 | 10000 | 0.88 | 50 | 25 | Stainless steel | 7.8 |
| SB-2 | 7.8 | 130 | 7.5 | 10000 | 1.1 | 50 | 25 | aluminum alloy | 5.5 |
| SB-2-1 | 6.6 | 110 | 7.5 | 10000 | 0.88 | 50 | 25 | aluminum alloy | 5.3 |
| SB-3 | 9 | 150 | 10 | 12000 | 0.88 | 50 | 25 | Stainless steel | 9 |
| SB-3-1 | 9 | 150 | 10 | 12000 | 0.88 | 50 | 25 | Stainless steel | 9.5 |
| SB-4 | 9 | 150 | 10 | 12000 | 0.88 | 50 | 25 | aluminum alloy | 7.5 |
| SB-6 | 6 | 100 | 7 | 8000 | 0.55 | 41 | 25 | Stainless steel | 5.7 |
| SB-7 | 6 | 100 | 7 | 8000 | 0.55 | 41 | 25 | Stainless steel | 5.5 |
| SB-8 | 6 | 100 | 7 | 8000 | 0.55 | 41 | 25 | aluminum alloy | 3.8 |
