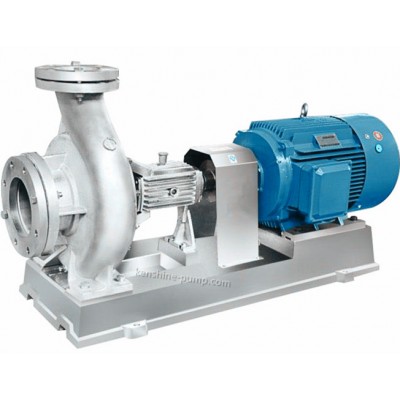

RY high temperature hot oil centrifugal circulating pump
1. RY high temperature oil pump single stage hot oil transfer centrifugal pump is a kind of centrifugal pump, suitable for heat-conduction oil, or other high temperature oil transfer with temperature≤370°C.
2.Pump can be equipped with explosion proof motor, gear box motor, also can be equipped with diesel engine.
3. It is sealed with new dynamic high temperature oil seal, or high temperature mechanical seal without leakage. And casing is made of high quality cast steel alloy.
4. Simple and reasonable structure gets low operating cost, high efficiency, small volume, low noise and excellent performance in thermal system application.
5. The centrifugal pump works as a hot oil (thermal oil) system booster pump for boiler, bitumen, resin, spinning and printing, dyeing, plastic and rubber processing, foodstuff industry, etc.
| MODEL | FLOW | HEAD | SPEED | POWER(KW) | EFFICIENCY | NPSH | |
| m3/h | m | r/min | SHAFT | MOTOR | % | m | |
| 125-80-270 | 75 | 20 | 1460 | 6.7 | 7.5 | 63 | 1.8 |
| 150-125-260 | 150 | 16 | 1460 | 8.5 | 11 | 75 | 1.8 |
| 150-125-320 | 100 | 30 | 1460 | 8.5 | 11 | 70 | 1.3 |
| 150-125-270 | 160 | 18 | 1460 | 11 | 15 | 75.5 | 2 |
| 150-125-360 | 120 | 36 | 1460 | 11.7 | 15 | 73 | 1.5 |
| 150-125-380 | 125 | 45 | 1460 | 15 | 18.5 | 72 | 1.3 |
| 150-125-280 | 180 | 20 | 1460 | 15 | 18.5 | 75.5 | 2.3 |
| 150-125-395 | 130 | 50 | 1460 | 19 | 22 | 73 | 1.9 |
| 150-125-350 | 140 | 40 | 1460 | 19 | 22 | 73 | 1.8 |
| 150-125-320 | 200 | 32 | 1470 | 26 | 30 | 76 | 2.2 |
| 150-125-380 | 160 | 45 | 1470 | 26 | 30 | 73 | 1.9 |
| 150-125-400 | 180 | 50 | 1480 | 31 | 37 | 74 | 1.8 |
| 200-150-400 | 260 | 50 | 1480 | 38 | 45 | 75 | 2.6 |
| 200-150-430 | 240 | 60 | 1480 | 38 | 45 | 73.5 | 2.3 |
| 200-150-410 | 300 | 50 | 1480 | 45.5 | 55 | 78 | 2.8 |
| 200-150-435 | 280 | 60 | 1480 | 46 | 55 | 75 | 2.6 |
| 200-150-420 | 400 | 50 | 1480 | 62 | 75 | 79 | 3.6 |
| 200-150-440 | 380 | 60 | 1480 | 62.5 | 75 | 77.5 | 3.5 |
| 200-150-465 | 300 | 70 | 1480 | 63 | 75 | 75 | 3.6 |
| 200-150-415 | 450 | 50 | 1480 | 75 | 90 | 80.5 | 4.2 |
| 200-150-450 | 420 | 60 | 1480 | 76 | 90 | 79.5 | 3.6 |
| 200-150-470 | 350 | 70 | 1480 | 77 | 90 | 76 | 3.1 |
| 250-200-460 | 460 | 60 | 1480 | 92 | 110 | 79.8 | 4 |
| 250-200-475 | 430 | 70 | 1480 | 94 | 110 | 78.5 | 3.6 |
| 250-200-470 | 560 | 60 | 1480 | 112 | 132 | 81 | 4.6 |
| 250-200-480 | 500 | 70 | 1480 | 113 | 132 | 80 | 4.5 |
| 300-250-500 | 600 | 72 | 1480 | 142 | 160 | 80.2 | 9.6 |
