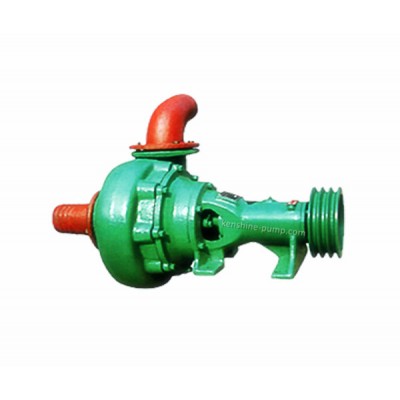

NB Single stage centrifugal slurry pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps
NB Series high efficiency and energy saving sand suction pump is single stage and single suction horizontal centrifugal pump, which is widely used to pump the mud with sand grains at the bottom of rivers and lakes, sludge and impurities in pits and ponds, etc. It is also used for supporting operation of water well drilling rig.
Wear resistant cast iron, long service life; Simple structure, reasonable design, convenient maintenance and balanced operation.
High efficiency and energy saving sand pump is a new product successfully developed according to the characteristics of vertical mud pump in our factory.
Features: good performance, high efficiency, long life, simple structure, easy maintenance, easy to use.
It can pump the mud with high sand content and anti-blocking. It is widely used to absorb the yellow sand at the bottom of rivers, lakes and silt in ponds. Also it is as the ideal energy saving sand pump together with the water well drilling rig and the foundation .
Flow rate: 40 to 400m3/h
Head:10 to 28m
Caliber:65 to 100mm
| Model | Flow(m3/h) | Head(m) | Poower(kw) | Speed(rpm) | Weight(kg) |
| NB65-10 | 40 | 10 | 3-4 | 1800 | 40 |
| NB65-35 | 35 | 28 | 11 | 2200 | 40 |
| NB75-20 | 60 | 10 | 3 | 1430 |
|
| NB80-15 | 60 | 15 | 5.5-4 | 1600 | 65 |
| NB80-28 | 60 | 28 | 11-4 | 1500 | 85 |
| NB100-9 | 100 | 9 | 7.5-4 | 1450 | 115 |
| NB100-16 | 140 | 16 | 15-4 | 1450 |
|
| NB150-20 | 300 | 12-30 | 18.5-37 | 1200 |
|
| NB150-150 | 150 | 9 |
|
1000 | 150 |
| NB150-A | 145 | 12 | 20-24 | 1450 |
|
| NB150-B | 200 | 20 | 22 | 1450 |
|
| NB150-C | 200-250 | 17-26 | 22-30 | 1470 |
|
| NB200-20 | 400 | 23 | 30-4 | 1750 |
|
