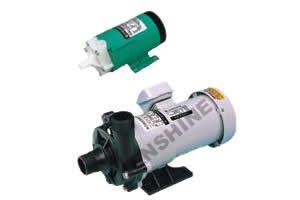

The pump is widely used to transport acid and alkali and oil and rare liquids and toxin and volatile liquids in chemical industry, pharmacy,petroleum, electroplate,food, photo etc and water circulation system and filter system. The pump without explosion proof motor is especially for flammable and explosive and leaky liquids.
Parameter:
|
Model
|
Soft pipe
|
Screw type
|
Max capacity (L/min
|
Max Head
(m
|
Rated discharge
|
Proportion
|
Motor
|
|
Inlet
(mm
|
Outlet
(mm)
|
Inlet/outlet
(inch)
|
Flexible pipe(mm)
|
50Hz/60Hz
|
50Hz/60Hz
|
Capacity
(L/min50Hz/60Hz
|
Head
(m)
50Hz/60Hz
|
|
Voltage
(w)
50Hz/60Hz
|
Phases
|
|
MP-6R
|
14
|
14
|
-
|
-
|
8/9
|
1/1.4
|
2.8/5
|
0.8
|
<1.2
|
3
|
1
|
|
MP-6RZ
|
14
|
14
|
-
|
-
|
5.5/6
|
2.1/2.7
|
3.2/4.5
|
0.8
|
<1.1
|
3
|
1
|
|
MP-10R
|
14
|
14
|
-
|
-
|
11/12
|
1.5/2.1
|
5/8
|
1
|
<1.1
|
6
|
1
|
|
MP-10RN
|
14
|
14
|
-
|
-
|
11/12
|
1.5/2.1
|
5/8
|
1
|
<1.1
|
6
|
1
|
|
MP-15R
|
16
|
16
|
-
|
-
|
16/19
|
2.7/3.4
|
8/12
|
1.5
|
<1.3
|
10
|
1
|
|
MP-15RN
|
16
|
16
|
-
|
-
|
16/19
|
2.7/3.4
|
8/12
|
1.5
|
<1.3
|
10
|
1
|
|
MP-15RM
|
-
|
-
|
3/4
|
13
|
16/19
|
2.4/3.4
|
8/12
|
1.5
|
<1.3
|
10
|
1
|
|
MP-20R
|
18
|
18
|
-
|
-
|
27/32
|
3.1/4.3
|
17/22
|
2
|
<1.2
|
20
|
1
|
|
MP-20RM
|
-
|
-
|
3/4
|
16
|
27/32
|
3.1/4.3
|
17/22
|
2
|
<1.2
|
20
|
1
|
|
MP-20RX
|
26
|
26
|
-
|
-
|
46/52
|
1.8/2.5
|
30/40
|
1
|
<1.3
|
20
|
1
|
|
MP-20RXM
|
-
|
-
|
1
|
20
|
46/52
|
1.8/2.5
|
30/40
|
1
|
<1.3
|
20
|
1
|
|
MP-2RZ
|
18
|
18
|
-
|
-
|
10/11
|
4.6/6.9
|
7/10
|
4
|
<1.1
|
20
|
1
|
|
MP-20RZM
|
-
|
-
|
3/4
|
13
|
10/11
|
4.6/6.9
|
7/10
|
4
|
<1.1
|
20
|
1
|
|
MP-30R
|
20
|
20
|
-
|
-
|
33/38
|
3.8/5.4
|
16/25
|
2.5
|
<1.3
|
45
|
1
|
|
MP-30RM
|
-
|
-
|
3/4
|
16
|
33/38
|
3.8/5.4
|
16/25
|
2.5
|
<1.3
|
45
|
1
|
|
MP-30RX
|
26
|
26
|
-
|
-
|
62/72
|
2.9/4.1
|
32/46
|
2
|
<1.1
|
45
|
1
|
|
MP-30RXM
|
-
|
-
|
1
|
20
|
62/72
|
2.9/4.1
|
32/46
|
2
|
<1.1
|
45
|
1
|
|
MP-30RZ
|
18
|
18
|
-
|
-
|
15/17
|
8/11
|
10/14
|
6
|
<1.1
|
45
|
1
|
|
MP-30RZM
|
-
|
-
|
3/4
|
13
|
15/17
|
8/11
|
10/14
|
6
|
<1.1
|
45
|
1
|
|
MP-40R
|
20
|
20
|
-
|
-
|
45/52
|
4.6/6.5
|
22/34
|
4
|
<1.1
|
65
|
1
|
|
MP-40RM
|
-
|
-
|
3/4
|
16
|
45/52
|
4.6/6.5
|
22/34
|
4
|
<1.1
|
65
|
1
|
|
MP-40RX
|
26
|
26
|
-
|
-
|
75/85
|
3.3/4.7
|
47/65
|
2
|
<1.1
|
65
|
1
|
|
MP-40RXM
|
-
|
-
|
1
|
20
|
75/85
|
3.3/4.7
|
47/65
|
2
|
<1.1
|
65
|
1
|
|
MP-55R
|
26
|
26
|
-
|
-
|
60/70
|
5.6/8.2
|
30/45
|
4
|
<1.2
|
90
|
1or3
|
|
MP-55RM
|
-
|
-
|
1
|
20
|
60/70
|
5.6/8.2
|
30/45
|
4
|
<1.2
|
90
|
1or3
|
|
MP-55RZ
|
26
|
26
|
-
|
-
|
25/28
|
10/14
|
15/22
|
8
|
<1.1
|
90
|
1or3
|
|
MP-55RZM
|
-
|
-
|
1
|
20
|
25/28
|
10/14
|
15/22
|
8
|
<1.1
|
90
|
1or3
|
|
MP-70R
|
26
|
26
|
-
|
-
|
86/97
|
6.7/9.7
|
50/72
|
4
|
<1.1
|
150/180
|
1or3
|
|
MP-70RM
|
-
|
-
|
1
|
20
|
86/97
|
6.7/9.7
|
50/72
|
4
|
<1.1
|
150/180
|
1or3
|
|
MP-100R
|
26
|
26
|
-
|
-
|
120/130
|
8.6/11.6
|
60/70
|
7/9
|
<1.3
|
250/265
|
1or3
|
|
MP-100RM
|
-
|
-
|
1
|
20
|
120/130
|
8.6/11.6
|
60/70
|
7/9
|
<1.3
|
250/265
|
1or3
|
|
MP-100RX
|
-
|
-
|
11/4
|
32
|
170
|
9.0
|
100
|
5.0
|
<1.3
|
250
|
1or3
|
|
MP-120R
|
-
|
-
|
11/2
|
36
|
220
|
10.5
|
140
|
6.0
|
<1.3
|
370
|
1or3
|
|
MP-120RT
|
-
|
-
|
21/4
|
48
|
220
|
10.5
|
140
|
6.0
|
<1.3
|
370
|
1or3
|
|
MPH-400CV5-D
|
-
|
-
|
11/2
|
36
|
260
|
12.5
|
150
|
8.5
|
<1.3
|
370
|
3
|
|
MPH-401CV5-D
|
-
|
-
|
11/2
|
36
|
330
|
18
|
200
|
12
|
<1.3
|
750
|
3
|
|
MPH-422CV5-D
|
-
|
-
|
2
|
11/2
|
300
|
21
|
200
|
18.5
|
<1.3
|
1500
|
1or3
|
|
MPH-423CV5-D
|
-
|
-
|
2
|
11/2
|
360
|
22
|
300
|
20.5
|
<1.3
|
2200
|
1or3
|
|
