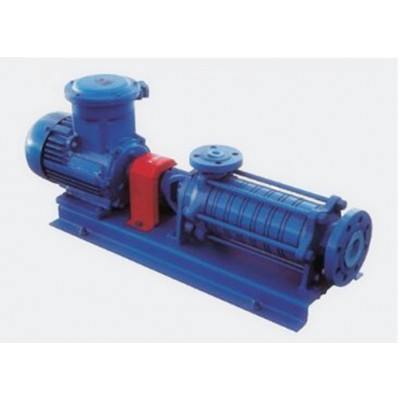

LPG Side channel multistage centrifugal pump

LPGP-65 LPG multistage pump is a centrifugal side channel pump with a horizontal structure, a total of 6 stages, the shaft is mechanically sealed, no cooling. LPGP-65 multistage pump is used to transfer LPG, especially for liquids with high pressure difference, low cavitation NPSH and gas content up to 50 percent, such as LPG pumped from underground tanks. The pump USES a pre-compressed turbine at the suction end, which makes it suitable for use in the case of low cavitation NPSH allowance. positive suction heads is lower than 0.5 m. Therefore, the pump can be used in bad air suction conditions. Application: 1. Bottling 2. Pump liquefied gas from underground tanks; 3. Load and unload large quantities of gas-filled tanker cars, tanker cars; 4. Liquefied gas pump gas recovery

Technical Parameter:

Max. Capacity: 42 m3/h

Max. Discharge. Pressure: 40 bar

Max. Viscosity: 100 cSt

Temperature Range: -40  to  220 degree celsius
