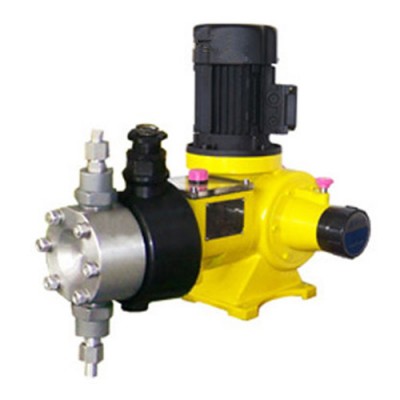

JYM Hydraulic diaphragm metering pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps
JYM1.6 Series hydraulic diaphragm metering pump:
Seal no leakage, hydraulic driven diaphragm, maintenance free
High precision inlet and outlet check valve
Built in adjustable pressure relief valve, limit automatic oil filling valve to ensure measurement accuracy.
Dual diaphragm / break alarm function.
PTFE material, diaphragm life longer than 8000 hours >3000 hours; metal diaphragm
Manual / automatic / digital frequency control flow.
Pump in the running and stop state can adjust the flow, accuracy + 1%
Maximum suction range 4.5m water column
Medium temperature: PTFE diaphragm is less than or equal to 120 DEG C, the metal diaphragm is less than or equal to 200 DEG C
A variety of pump head material optional: PVC, PTFE, PVDF, 304, 316L and 20# alloy, ha B, ha C, etc..
Can work alone, but also multiple parallel.
Maximum applicable medium viscosity <2000CP
Specification Sheet
Model
Flow rate
Pressure
Plunger Dia.
Stroke
Speed
Motor power
Inlet/outlet
L/H
Mpa
mm
mm
(mm)-1
KW
mm
JYM1.6-0.7/30
0.7
30
8
12.5
45
0.55
ΓΈ6
JYM1.6-1.4/20
1.4
20
20
JYM1.6-2.2/20
2.2
20
10
20
JYM1.6-3.5/20
3.5
20
12.5
106
JYM1.6-4.5/20
4.5
20
135
JYM1.6-6.0/20
6.0
20
20
106
JYM1.6-8.0/20
8.0
20
135
JYM1.6-11.5/12.5
11.5
12.5
12
20
106
0.55
10
JYM1.6-11.5/6.3
11.5
6.3
0.37
JYM1.6-15/10
15
10
135
0.55
JYM1.6-15/5
15
5
0.37
JYM1.6-22/8
22
8
16
106
0.55
JYM1.6-22/4.0
22
4.0
0.37
JYM1.6-28/6.3
28
6.3
135
0.55
JYM1.6-28/3.2
28
3.2
0.37
JYM1.6-36/5.0
36
5
20
106
0.55
JYM1.6-36/2.5
36
2.5
0.37
JYM1.6-45/4.0
45
4.0
135
0.55
JYM1.6-45/2.0
45
2.0
0.37
JYM1.6-55/3.2
55
3.2
25
106
0.55
15
JYM1.6-55/1.6
55
1.6
0.37
JYM1.6-72/2.5
72
2.5
135
0.55
JYM1.6-72/1.3
72
1.3
0.37
JYM1.6-80/2.2
80
2.2
30
106
0.55
JYM1.6-80/1.0
80
1.0
0.37
JYM1.6-105/2.0
105
2.0
135
0.55
JYM1.6-105/1.0
105
1.0
0.37
JYM1.6-92/2.0
92
2.0
32
106
0.55
JYM1.6-92/1.0
92
1.0
0.37
JYM1.6-120/1.6
120
1.6
135
0.55
JYM1.6-120/0.8
120
0.8
0.37
JYM1.6-150/1.3
150
1.3
36
135
0.55
JYM1.6-150/0.8
150
0.8
0.37
JYM1.6-190/1.0
190
1.0
40
135
0.55
JYM1.6-190/0.63
190
0.63
0.37
JYM1.6-240/0.8
240
0.8
45
135
0.55
20
JYM1.6-240/0.5
240
0.5
0.37
JYM1.6-300/0.63
300
0.63
50
20
135
0.55
JYM1.6-300/0.62
300
0.62
0.37
