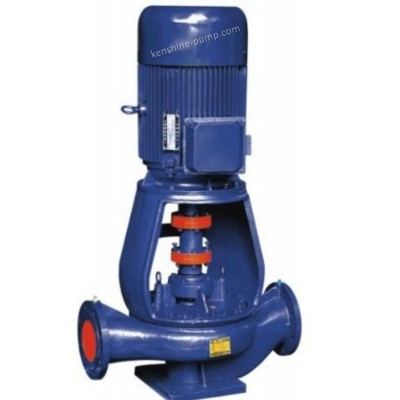

ISGB Vertical easy disassembly centrifugal booster pump

ISGB Vertical easy disassembly centrifugal booster pump

ISGB Vertical easy disassembly centrifugal booster pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

Description

ISGB Vertical easy disassembly centrifugal pump:

ISGB vertical circulation pump booster pipeline water pump is high-effective and energy-saving and easily disassembled

 It is used to transfer pure water and other liquids similar. ISGB Pump has the advantages of compact structure and small volume and stable running and easy assembly and maintenance. Pump shaft is provided with independent supporting point to ensure steady running and long performance life. ISGB Vertical pipeline centrifugal booster pump is very easy disassembly.

Application:

ISGB Series vertical booster centrifugal pump is widely used in industrial and cities’ water supply and drainage, high buildings’ booster water supply, gardens irrigation, fire fighting booster, remote water supply, warming systems, circular booster of cold and hot water in bath rooms as well as in competitions of equipment

Pump performance range:

Pump material: cast iron or cast steel or stainless steel

Flow rate:4 to 1500m3/h

Head:5 to 125m

Speed:960rpm to 2900rpm

Pump caliber: 25mm to 350mm

ISGB vertical pipeline booster centrifugal pumps are made of cast iron material and the pumps are mainly used to handle the non-corrosive cold and hot water ,

IHGB vertical chemical centrifugal pumps are made of stainless steel material and the pumps are used in the fields of petroleum, chemical ,metallurgy, electric power , papermaking , pharmaceuticals , synthetic fiber ,etc.

Model Flow rate Head Efficiency Speed Motor power NPSH
m3/h l/s m % r/min KW m
50-125A 11 3.05 16 57 2900 1.1 2.3
50-160 12.5 3.47 32 52 2900 3 2.3
50-160A 11.7 3.25 28 51 2900 2.2 2.3
50-160B 10.4 2.89 22 50 2900 1.5 2.3
50-200 12.5 3.47 50 46 2900 5.5 2.3
50-200A 11.7 3.25 44 45 2900 4 2.3
50-200B 10.6 2.94 36 44 2900 3 2.3
50-250 12.5 3.47 80 38 2900 11 2.3
50-250A 11.6 3.22 70 38 2900 7.5 2.3
50-250B 10.8 3 60 37 2900 7.5 2.3
50-250C 10 2.78 52 36 2900 5.5 2.3
50-100(I) 25 6.94 12.5 69 2900 1.5 2.5
50-100(I)A 22.3 6.19 10 67 2900 1.1 2.5
50-125(I) 25 6.94 20 68 2900 3 2.5
50-125(I)A 22.3 6.19 16 66 2900 2.2 2.5
50-160(I) 25 6.94 32 63 2900 4 2.5
50-160(I)A 23.4 6.5 28 62 2900 4 2.5
50-160(I)B 21.6 6 24 58 2900 3 2.5
50-200(I) 25 6.94 50 58 2900 7.5 2.5
50-200(I)A 23.5 6.53 44 57 2900 7.5 2.5
50-200(I)B 21.8 6.06 38 55 2900 5.5 2.5
50-250(I) 25 6.94 80 50 2900 15 2.5
50-250(I)A 23.4 6.5 70 50 2900 11 2.5
50-250(I)B 21.6 6 60 49 2900 11 2.5
50-315(I) 25 6.94 125 40 2900 30 2.5
50-315(I)A 23.7 6.58 113 40 2900 22 2.5
50-315(I)B 22.5 6.25 101 39 2900 18.5 2.5
50-315(I)C 20.6 5.72 85 38 2900 15 2.5
65-100 25 6.94 12.5 69 2900 1.5 2.5
65-100A 22.3 6.19 10 67 2900 1.1 2.5
65-125 25 6.94 20 68 2900 3 2.5
65-125A 22.3 6.19 16 66 2900 2.2 2.5
65-160 25 6.94 32 63 2900 4 2.5
65-160A 23.4 6.5 28 62 2900 4 2.5
65-160B 21.6 6 24 58 2900 3 2.5
65-200 25 6.94 50 58 2900 7.5 2.5
65-200A 23.5 6.53 44 57 2900 7.5 2.5
65-200B 21.8 6.06 38 55 2900 5.5 2.5
65-250 25 6.94 80 50 2900 15 2.5
65-250A 23.4 6.5 70 50 2900 11 2.5
65-250B 21.6 6 60 49 2900 11 2.5
65-315 25 6.94 125 40 2900 30 2.5
65-315A 23.7 6.58 113 40 2900 22 2.5
65-315B 22.5 6.25 101 39 2900 18.5 2.5
65-315C 20.6 5.72 85 38 2900 15 2.5
65-100(I) 50 13.9 12.5 73 2900 3 3
65-100(I)A 44.7 12.4 10 72 2900 2.2 3
65-125(I) 50 13.9 20 72.5 2900 5.5 3
