Description

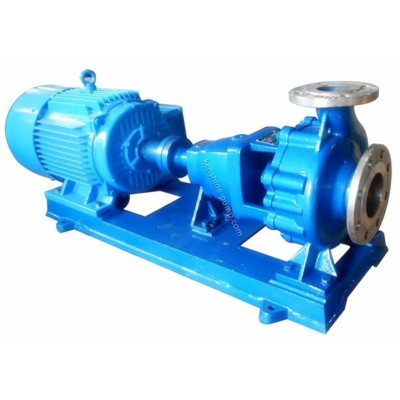

IH Single stage single suction horizontal centrifugal pump back pull out
Pump material:cast steel,stainless steel
Mechanical seal (single end face or double ends face)
normal motor or explosion proof motor
IH Series chemical industry pump is the single stage single suction overhung centrifugal pump. The rated performance and size etc are as the ISO2858-1975(E). The pump is the new energy-saving pump to substitute F series corrosion resistance pump in chemical industry, petroleum, metallurgy, electricity station, food, pharmacy, etc. The liquids pumped is the corrosive liquids at the temperature of -20℃～115℃ or liquids which are similar to water in physical and chemical characteristic. IHR chemical pump can transport the liquids at the temperature of 20℃～180℃ by the mechanical seal with anti-high temperature.
Structure:
Capacity: 6.3-400m3/h
Head: 5-125m
Max working pressure: 1.6MPa
The parts which contact with liquids can be used different material as the corrosion of liquids.
