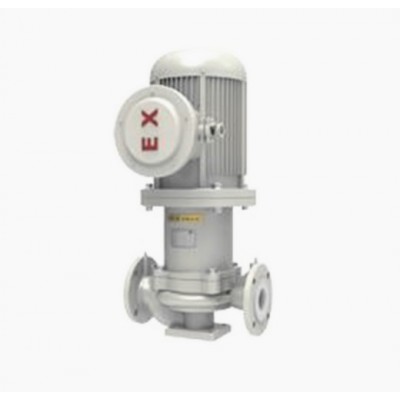

HCLF Vertical fluorine plastic lining magnetic pump

HCLF Vertical fluorine plastic lining magnetic pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

INQUIRY

entrust procurement

Description

HCLF vertical Fluorine plastic lining magnetic pump has the features of pipeline pump and magnetic pump. The flow parts are fluorine plastic (PTFE,PFA,FEP). The pump has the advantages of no leakage, good corrosion resistance and small volume, high efficiency etc.

HCLF Vertical fluorine plastic lining magnetic pump is suitable to transfer flammable, explosive, volatile, toxic, high temperature alkali, organic fluxing agent and corrosive liquids in petroleum, chemical industry, alkali product, smelting, rare earth,pesticides,dyes,medicine,papermaking,electroplating,electrolysis,defense industry etc

Model	Speed	Flow	Head	Efficiency	NPSH	Inlet/outlet	Motor power	Weight
Model	r/min	m3/h	m	％	m	mm	kw	kg
HCLF25-125	2900	1.5	22	18	2.5	25×20	1.1	27
		2	20	20	2.5
		3.2	18.5	24	3
HCLF25-160	2900	1.5	34.3	19	2.5	25×20	1.5	36
		2	32	22	2.5
		3.2	29.6	25	3
HCLF25-200	2900	1.5	52.5	18	2.5	25×20	3	51
		2	50	20	2.5
		3.2	48	22	3
HCLF25-250	2900	1.5	82	12	2.5	25×20	7.5	63
		2	80	18	2.5
		3.2	78.5	26	3
HCLF32-125	2900	2	22	20.5	2.5	32×20	1.5	30
		3.2	20	20	2.5
		5.5	18.5	18	3
HCLF32-160	2900	2	34.3	20.5	2.5	32×20	2.2	35
		3.2	32	20	2.5
		5.5	29.6	18	3
HCLF32-200	2900	2	52.5	32	2.5	32×20	4	61
		3.2	50	36	2.5
		5.5	48	34	3
HCLF32-250	2900	2	82	26	2.5	32×20	7.5	75
		3.2	80	30	2.5
		5.5	78.5	28	3
HCLF40-125	2900	4.4	22	16	2.5	40×25	1.5	35
		6.3	20	20	2.5
		8.3	18.5	23	3
HCLF40-160	2900	4.4	34.3	30	2.5	40×25	3	40
		6.3	32	31	2.5
		8.3	29.6	32	3
HCLF40-200	2900	4.4	52.5	26	2.5	40×25	5.5	66
		6.3	50	33	2.5
		8.3	48	32	3
HCLF40-250	2900	4.4	82	24	2.5	40×25	11	95
		6.3	80	28	2.5
		8.3	78.5	28	3
HCLF50-125	2900	7.5	22	43	2	50×32	2.2	44
		12.5	20	51	2
		15	18.5	49	2.5
HCLF50-160	2900	7.5	34.3	35	2	50×32	3	61
		12.5	32	47	2
		15	29.6	47	2.5
HCLF50-200	2900	7.5	52.5	28	2	50×32	7.5	113
		12.5	50	40	2
		15	48	48	2.5
HCLF50-250	2900	7.5	82	23	2	50×32	11	180
		12.5	80	33	2
		15	78.5	36.5	2.5
HCLF65-125	2900	15	21.8	46	2	65×50	3	80
		25	20	56	2
		30	18.5	65	2.5
HCLF65-160	2900	15	35	46	2	65×50	5.5	97
		25	32	56	2
		30	30	65	2.5
HCLF65-200	2900	15	53	34	2	65×40	11	120
		25	50	46	2
		30	47	50	2.5
HCLF65-250	2900	15	82	33	2	65×40	18.5	203
		25	80	48	2
		30	78	50	2.5
HCLF65-315	2900	15	127	28	2.5	65×40	30	345
		25	125	39	2.5
		30	123	42.5	3
HCLF80-125	2900	30	22.5	52	3	80×65	5.5	125
		50	20	65	3
		60	18	70	3.5
