GBF Fluorine plastic lined pipeline chemical pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

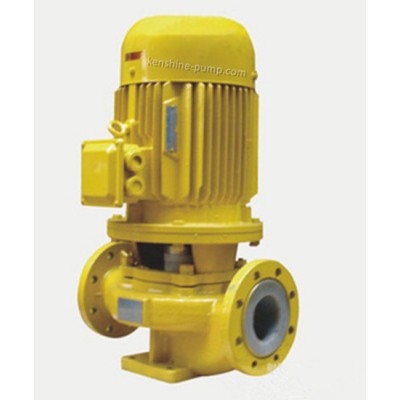

GBF Vertical fluorine plastic lined pipeline chemical pump
GBF fluorine plastic lined inline pump is made of metal casing lined with FEP, PVDF,PTFE. It is combined of excellent hydraulic model and IS centrifugal pump performance and vertical pump structure.
GBF vertical fluorine plastic lined pipeline chemical pump is suitable to transfer acid, alkali and other corrosive oxidant with any concentration at the temperature from -85 to 200 degree Celsius. GBF vertical fluorine plastic lined chemical pump is widely used in petroleum, chemical, metallurgy, power, paper making, flue gas desulfurization, dust removal, food and pharmaceutical and synthetic fiber etc industries.
GBF Vertical fluorine plastic lined pipeline pump has very good corrosion resistance and heat resistance, high efficiency, energy saving, low noise, reliable performance. It is the good chemical pump which can replace 316L Stainless steel or titanium alloy etc metal pump
Parameter sheet:
Model
Flow rate
Head
Speed
Motor power
m3/h
m
r/min
kw
25-125
4
20
2900
0.75/1.1
25-125A
3.6
16
2900
0.55/0.75
25-160
4
32
2900
1.5/2.2
25-160A
3.7
28
2900
1.1/1.5
40-125
6.3
20
2900
1.1/1.5
40-125A
5.6
16
2900
0.75/1.1
40-160
6.3
32
2900
2.2/3
40-160A
5.9
28
2900
1.5/2.2
40-200
6.3
50
2900
4/5.5
40-200A
5.9
44
2900
3/4
50-125
12.5
20
2900
1.5/2.2
50-125A
11
16
2900
1.1/1.5
50-160
12.5
32
2900
3/4
50-160A
11.7
28
2900
2.2/3
50-200
12.5
50
2900
5.5/7.5
50-200A
11.7
44
2900
4/5.5
65-125
25
20
2900
3/4
65-125A
22.3
16
2900
2.2/3
65-160
25
32
2900
4/5.5
65-160A
23.4
28
2900
4/5.5
65-200
25
50
2900
7.5/11
65-200A
23.5
44
2900
7.5/11
80-125
50
20
2900
5.5/7.5
80-125A
45
16
2900
4/5.5
80-160
50
32
2900
7.5/11
80-160A
46.7
28
2900
7.5/11
80-200
50
50
2900
15/18.5
80-200A
47
44
2900
11/15
100-125
100
20
2900
11/15
100-125A
89
16
2900
7.5/11
100-160
100
32
2900
15/18.5
100-160A
93.5
28
2900
11/15
100-200
100
50
2900
22/30
100-200A
93.5
44
2900
18.5/22
125-125
160
20
2900
15/18.5
125-125A
143
16
2900
11/15
125-160
160
32
2900
22/30
125-160A
150
28
2900
18.5/22
150-125
160
20
2900
15/18.5
150-125A
150
16
2900
11/15
150-160
160
32
2900
22/30
150-160A
150
28
2900
18.5
