FPZ/ SP Series Self Priming Anticorrosion Polypropylene Centrifugal Pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

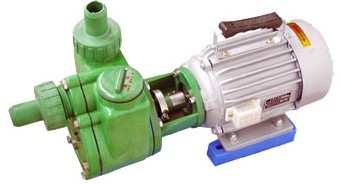

FPZ Series corrosion resistance self priming pump is the horizontal pump with self priming performance. It is made of reinforced polypropylene plastic (RPP) which is suitable for the liquids between -10℃ and 90℃ and PVDF which are suitable for the liquids between -10℃ and 120℃. Shaft seal is the corrosion resistance mechanical seal with no leak. Impeller and shaft are in-lined for the steady operation and so as not to let the liquids into shaft.
Connection method for the pump and motor has two types. One is close couple which has compact structure and high efficiency. The other is coupling which is convenient to disassemble pump.
FPZ pumps are widely used in chemical industry and pharmacy and food and metallurgy and environment protection and sewage dealing and inorganic salt etc.
Parameter:
|
Model |
Inlet*Outlet |
Capacity (m3/h) |
Head (m) |
Speed
|
Suction height |
Power
|
|
25FPZ-10(D) |
25×20 |
2.5 |
10 |
2840 |
5 |
0.55 |
|
32FPZ-11(D) |
32×25 |
3.4 |
11 |
2840 |
5 |
0.75 |
|
40FPZ-18 |
40×32 |
11 |
18 |
2840 |
5 |
1.5 |
|
50FPZ-20 |
50×40 |
13 |
20 |
2840 |
5 |
2.2 |
|
65FPZ-25 |
65×50 |
26 |
25 |
2840 |
5 |
4 |
|
80FPZ-32 |
80×65 |
50 |
32 |
2840 |
5 |
7.5 |
|
100FPZ-40 |
100×80 |
100 |
20 |
2840 |
5 |
11 |
