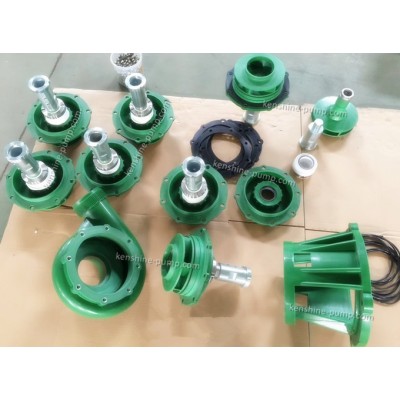

centrifugal pump
Parameter:
| Model | Pump caliber | Flow rate | Head | Suction height | Speed | Voltage | Motor Power | |
| Inlet | Outlet | m³/h | M | M | rpm | v | KW | |
| FP20-15-100(105) | 20 | 15 | 3 | 7 | 4 | 2900 | 380 | 0.75 |
| FP32-25-100(104) | 32 | 25 | 4 | 7 | 6.5 | 2900 | 220 | 0.55 |
| FP32-25-105(103) | 32 | 25 | 6.3 | 8 | 6.5 | 2900 | 380 | 0.75 |
| FP40-32-125(102) | 40 | 32 | 12.5 | 20 | 6.5 | 2900 | 380 | 1.5 |
| FP50-40-130(101.5) | 50 | 40 | 13 | 22 | 6.5 | 2900 | 380 | 2.2 |
| FP65-50-150(101) | 65 | 50 | 25 | 25 | 6 | 2900 | 380 | 4 |
| 50FP-22 | 50 | 40 | 13 | 22 | 6 | 2900 | 380 | 2.2 |
| 65FP-25 | 65 | 50 | 20 | 25 | 6 | 2900 | 380 | 4 |
| 80FP-28 | 80 | 65 | 50 | 28 | 4 | 2900 | 380 | 5.5 |
| 80FP-32 | 80 | 65 | 50 | 32 | 4 | 2900 | 380 | 7.5 |
