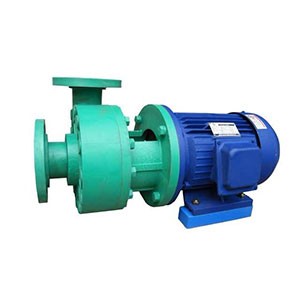

FP Series reinforced polypropylene plastic chemical centrifugal pump

FP Series reinforced polypropylene plastic chemical centrifugal pump

FP Series reinforced polypropylene plastic chemical centrifugal pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps

Description

FP Series reinforced polypropylene corrosion resistance centrifugal pump
Summary:
FP Series reinforced polypropylene corrosion resistance centrifugal pump has the advantages such as advanced structure, small volume, light weight, energy-saving and good seal and corrosion resistance etc. The pump is widely used to transport the acid and alkali and salt etc corrosive liquids in chemical industry and light industry and waste dealing etc. FP Series reinforced polypropylene centrifugal and FS Series etc pumps all use the mechanical seal and are made from CFR-PP (Reinforced polypropylene) and ABS(Engineering plastic) etc.

The 104 pump with 220V can be in domestic use.

Parameter:


Model Pump caliber Flow rate Head Suction height Speed Voltage Motor Power
Inlet Outlet m³/h M M rpm v KW
FP20-15-100(105) 20 15 3 7 4 2900 380 0.75
FP32-25-100(104) 32 25 4 7 6.5 2900 220 0.55
FP32-25-105(103) 32 25 6.3 8 6.5 2900 380 0.75
FP40-32-125(102) 40 32 12.5 20 6.5 2900 380 1.5
FP50-40-130(101.5) 50 40 13 22 6.5 2900 380 2.2
FP65-50-150(101) 65 50 25 25 6 2900 380 4
50FP-22 50 40 13 22 6 2900 380 2.2
65FP-25 65 50 20 25 6 2900 380 4
80FP-28 80 65 50 28 4 2900 380 5.5
80FP-32 80 65 50 32 4 2900 380 7.5

Parameter:

Model Pump caliber Flow rate Head Suction height Speed Voltage Motor Power
Inlet Outlet m³/h M M rpm v KW
FP20-15-100(105) 20 15 3 7 4 2900 380 0.75
FP32-25-100(104) 32 25 4 7 6.5 2900 220 0.55
FP32-25-105(103) 32 25 6.3 8 6.5 2900 380 0.75
FP40-32-125(102) 40 32 12.5 20 6.5 2900 380 1.5
FP50-40-130(101.5) 50 40 13 22 6.5 2900 380 2.2
FP65-50-150(101) 65 50 25 25 6 2900 380 4
50FP-22 50 40 13 22 6 2900 380 2.2
65FP-25 65 50 20 25 6 2900 380 4
80FP-28 80 65 50 28 4 2900 380 5.5
80FP-32 80 65 50 32 4 2900 380 7.5
