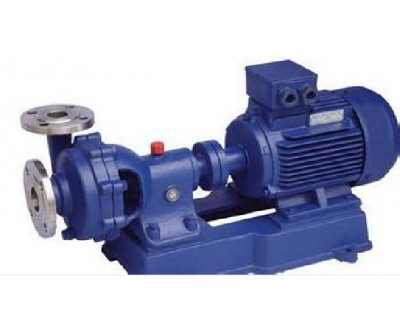

FB,AFB Stainless steel chemical resistant pump,kenshine-pump,Machinery & Industrial Parts,Industrial Parts & Fabrication Services,Pumps & Parts,Pumps
Introduction:
FB.AFB type pump is single stage single-suction cantilever-style corrosion-resistant pump, adopt the feature of 1990s of pumps, advanced hydraulic model, compact structure and high strength combined single and double mechanical seal with high efficiency, compact structure , stable performance, reliable usage, etc.
The pumps are suitable to transfer medium that not include solid particles, corrosive and temperature
between -20 to 150 degrees Celsius, specifications above 40FB-25 can be used to transfer around 200 degrees Celsius heat medium. Pump inlet pressure can not be higher than 0.2Mpa, are widely used in petroleum, chemical, metallurgy, synthetic fibers, pharmaceutical, food, brewing and other industry sectors, also for industrial and mining enterprises and urban water supply, drainage purposes.
Capacity: up to 200m3/h
Head : up to 70 m
Power: up to 55kw
Temperature: -20~105 DegC
Specification sheet:
| MODEL | FLOW | HEAD | SPEED | EFFICIENCY | NPSHr | Motor Power | |
| m | r/min | % | (NPSH)r | KW | |||
| m3/h | L/S | m | |||||
| 25FB-16 | 3.6 | 1 | 16 | 2900 | 35 | 4 | 0.75 |
| 25FB-25 | 3.6 | 1 | 25 | 2900 | 30 | 4 | 1.5 |
| 25FB-40 | 3.6 | 1 | 40 | 2900 | 25 | 4 | 2.2 |
| 40FB-16 | 7.2 | 2 | 16 | 2900 | 50 | 4 | 2.2 |
| 40FB-20 | 7.2 | 2 | 20 | 2900 | 45 | 4 | 2.2 |
| 40FB-25 | 7.2 | 2 | 25 | 2900 | 40 | 4 | 3 |
| 40FB-40 | 7.2 | 2 | 40 | 2900 | 35 | 4 | 3 |
| 50FB-16 | 14.4 | 4 | 16 | 2900 | 62 | 3.5 | 3 |
| 50FB-25 | 14.4 | 4 | 25 | 2900 | 54 | 3.5 | 4 |
| 50FB-40 | 14.4 | 4 | 40 | 2900 | 40 | 3.5 | 5.5 |
| 65FB-25 | 28.8 | 8 | 25 | 2900 | 63 | 3.5 | 5.5 |
| 65FB-30 | 28.8 | 8 | 30 | 2900 | 60 | 3.5 | 7.5 |
| 65FB-40 | 28.8 | 8 | 40 | 2900 | 58 | 3.5 | 7.5 |
| 80FB-25 | 54.4 | 15 | 16 | 2900 | 70 | 3 | 5.5 |
| 80FB-30 | 54.4 | 15 | 25 | 2900 | 68 | 3 | 7.5 |
| 80FB-40 | 54.4 | 15 | 40 | 2900 | 66 | 3 | 15 |
| 100FB-25 | 100.8 | 28 | 25 | 2900 | 75 | 3 | 15 |
| 100FB-40 | 100.8 | 28 | 40 | 2900 | 70 | 3 | 22 |
| 100FB-65 | 100.8 | 28 | 64 | 2900 | 65 | 3 | 40 |
| 150FB-25 | 190 | 53 | 25 | 2900 | 80 | 2.35 | 22 |
| 150FB-40 | 190 | 53 | 40 | 2900 | 75 | 2.35 | 40 |
